ポルシェ 911(993)カレラ ティプトロニック MIZWAディーラー車 ☆エンジンオーバーホール済☆ R-GO Restoration

ポルシェ 911(993)カレラ ティプトロニック MIZWAディーラー車 ☆エンジンオーバーホール済☆ R-GO Restoration

2170万円
LANGUAGE ENGLISH
メーカー
Porsche 911(993)Carrera Tiptronic MIZWA
年式
1997(1996モデル)
走行距離
37,000km
車検
価格
2170
コメント

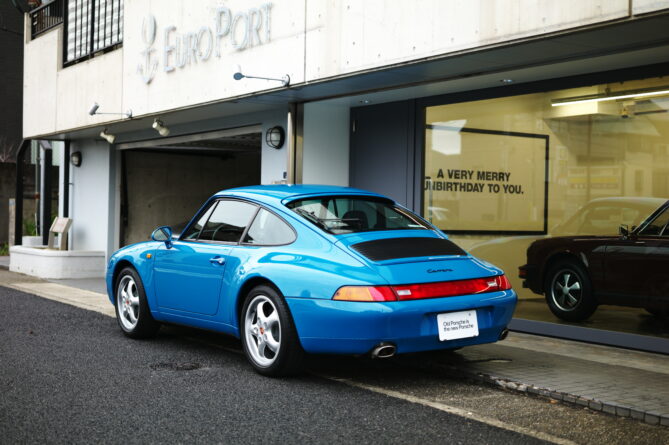

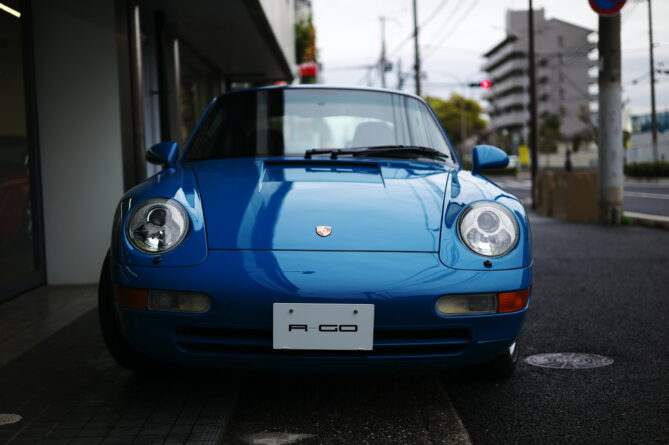

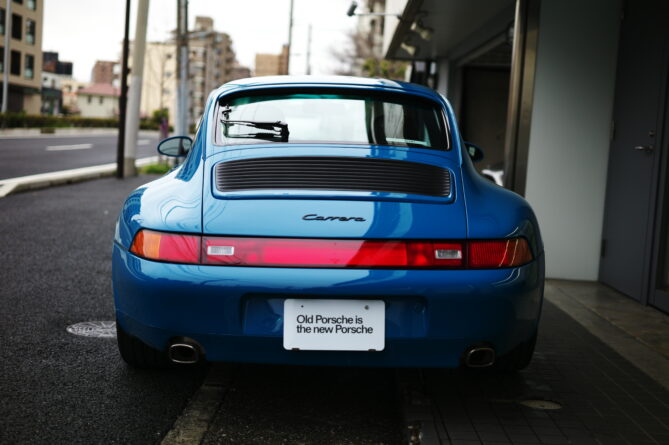

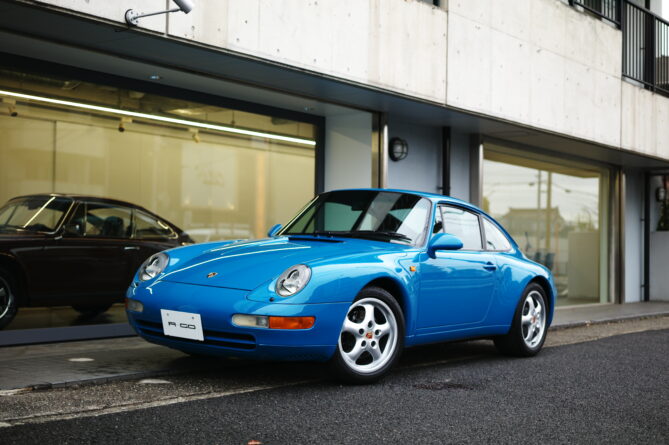

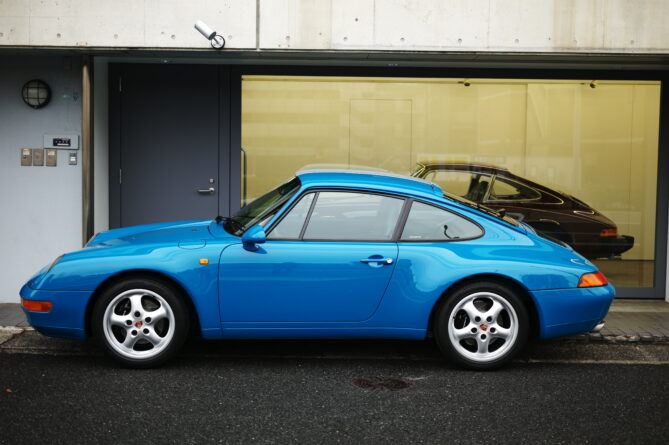

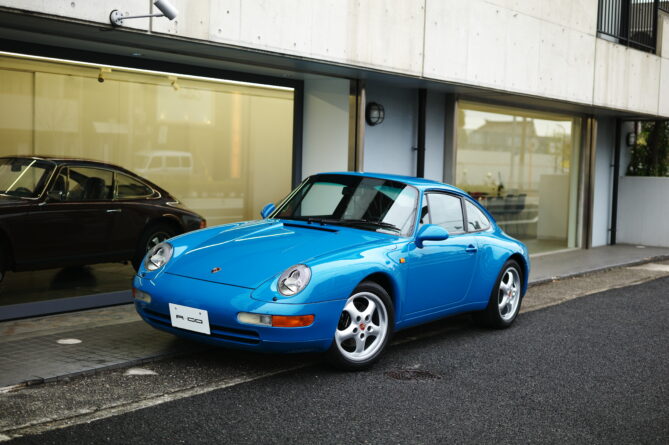

Porsche 911 (993) Carrera Tiptronic, MIZWA authorized dealer vehicle, now in stock.

1997 model year (1996 model)
Mileage: 37,000 km
Vehicle inspection: Included

Exterior color: Blue Turquoise
Interior: Black

Engine: M64/22 63T51483


・MIZWA authorized dealer vehicle
・Left-hand drive
☆Matching☆
☆Engine overhauled☆
・Tiptronic
・Air conditioning
・Power windows
・Late model Varioram engine

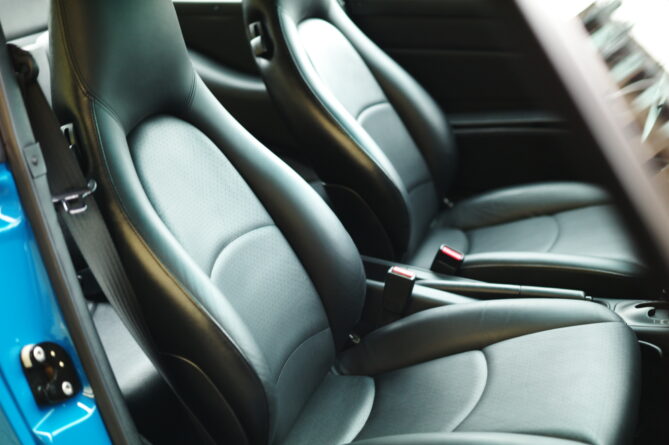

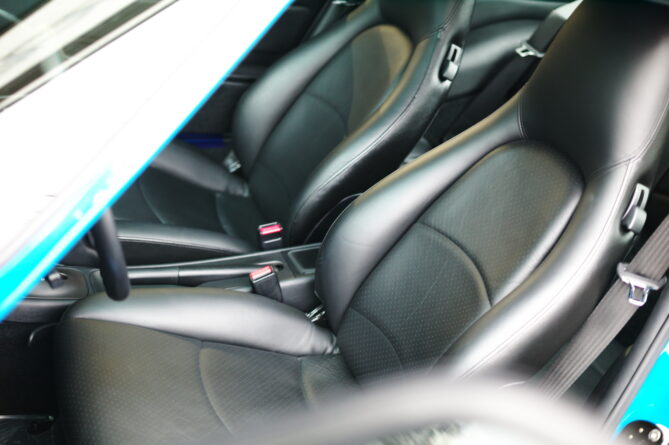

・Black leather seats
・Genuine 17-inch alloy wheels
・Onboard computer
・Rear wiper
・Spare key, owner’s manual, and accessories included
◇Maintenance and inspection records available◇
① February 2004 10,041 km
② November 2007: 14,146 km
③ June 2008: 16,349 km
④ November 2009: 19,822 km
⑤ November 2009: 19,828 km
⑥ March 2010: 20,276 km
⑦ March 2012: 24,951 km
⑧ April 2014: 27,935 km
⑨ 2016 March 30,853 km
⑩ April 2018 33,917 km
⑪ August 2019 34,952 km
⑫ April 2020 35,454 km
⑬ June 2025 36,280 km
⑭ June 2025 36,314 km

☆Our Work Details☆
【Engine Related】

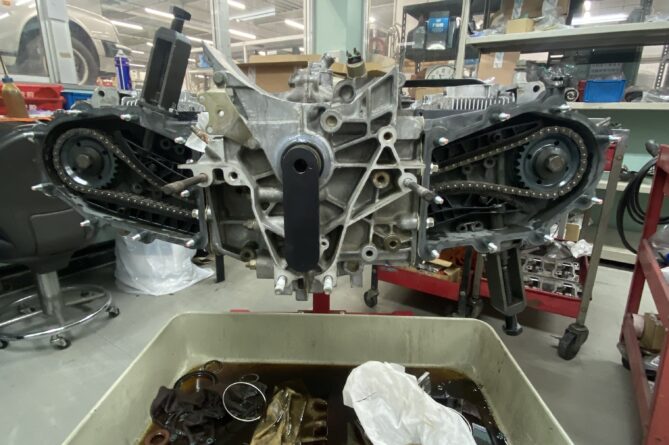

This vehicle underwent an engine overhaul. In addition to replacing worn parts, the entire process from disassembly, measurement, processing, and assembly was carried out to ensure optimal engine performance.
After disassembly, each engine part was deep-cleaned using wet blasting, and the work was carried out after accurately checking its condition. The cylinder head area was meticulously prepared, including measurement of each valve stem, replacement of all exhaust valve guides, valve seat cutting, valve lapping, and valve timing adjustment.

The cylinder head gasket set was replaced, and the timing chain guide rail bearings, camshaft flange cover, and intake/exhaust valve covers were also replaced. In addition, parts prone to deterioration over time, such as the oil filter bellows, oil hose between the oil tank and engine, crankcase breather hose, and idle speed valve hose, were also replaced.

Details such as the vario ram flap gasket and cooling fan bearing were also addressed to improve engine reliability.

The ignition system was upgraded by replacing the spark plug wire set, spark plugs, distributor cap, and rotor to ensure stable combustion. Furthermore, the fuel line was revised, replacing the return hose in the engine compartment, the hose between the fuel filter and rails, and the injection rail line to optimize the fuel path.

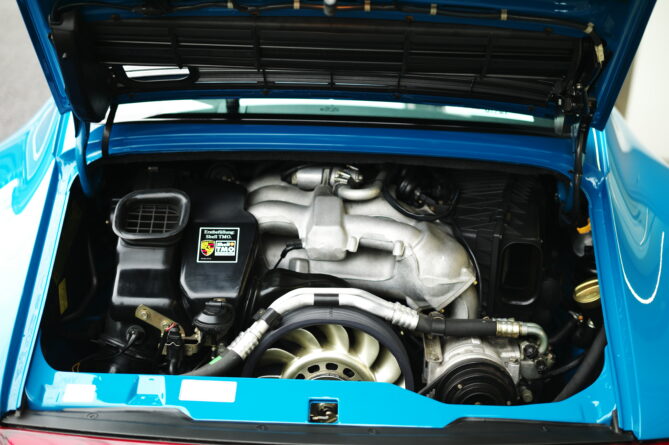

With meticulous attention to detail in both the aesthetics when the engine hood is open and the intricate internal finishing, this engine delivers the true performance and feel of an air-cooled Porsche, resulting in a reliable engine that can be enjoyed for many years to come.

[Work Details]
Engine Room Deep Cleaning
EX Muffler Deep Cleaning & Polishing

Engine Parts Deep Cleaning (Wet Blasting)
Cylinder Head, etc.
Engine Parts Measurement & Inspection
Timing Chain Alignment Inspection
Valve Timing Adjustment
All EX Valve Guides Replaced
All Valve Seats Cut
Cylinder Head Valve Lapping
Valve Spring Set Length Adjustment (IN 37mm, EX 36mm)
Crankcase Partial Gasket Seal Replacement
Cylinder Head Gasket Set Replacement
Tappet Hydraulic Valve x 6 Replacement
Timing Chain Guide Rail Bearing Replacement
Camshaft Flange Cover Replacement
All IN/EX Valve Covers Replaced
Oil Filter Bellows Replacement
Oil Tank to Engine Oil Hose x 2 Replacement
Crankcase Breather Hose Replacement
Idle Speed ​​Valve Air Hose x 2 Replacement
Varioram Flap Gasket Replacement
Cooling Fan Bearing Replacement


Spark Plug Cord Set Replacement
All Spark Plugs Replaced
Distributor Rotor Replacement
Distributor Cap Replacement


Engine Room Fuel Return Hose Replacement
Fuel Filter to Rail Line Fuel Hose Replacement
Fuel Injection Rail Line Replacement (including regulator)

[Complete Set of Replacement Parts]
Crankcase Partial Gasket Seal
Cylinder Head Gasket Set
Tappet Hydraulic Valve x 6
Timing Chain Guide Rail Bearing
Camshaft Flange Cover
All IN/EX Valve Covers
Oil Filter Bellows
Oil Tank to Engine Oil Hose x 2
Crankcase Breather Hose
Idle Speed ​​Valve Air Hose x 2
Varioram Flap Gasket
Cooling Fan Bearing
Spark Plug Wire Set
All Spark Plugs
Distributor Rotor
Distributor Cap
Engine Room Fuel Return Hose
Fuel Filter to Rail Line Fuel Hose
Fuel Injection Rail Line

[Transmission Related]
[Work Details]
Transmission Deep Cleaning
Transmission Strainer Replacement
Transmission Oil Change

[Replacement Parts]
Transmission Strainer
Transmission Fluid Container
Transmission Oil Filter

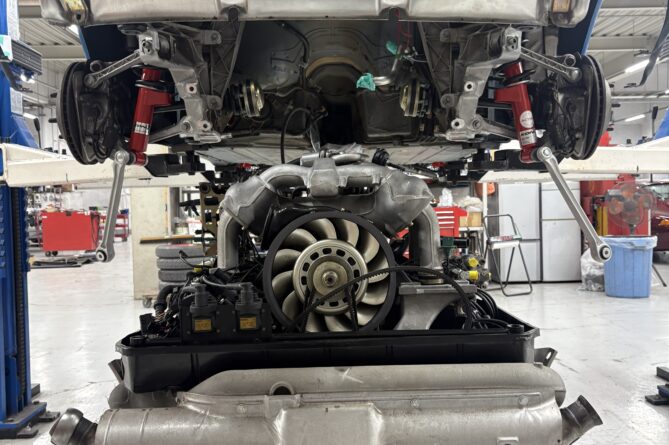

[Suspension Related]
The suspension has been refreshed with the aim of improving driving stability and ride quality.

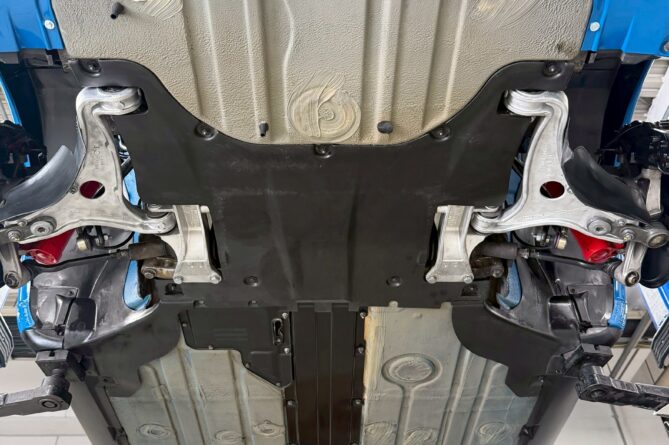

First, the wheel wells, suspension, and various arms are deep cleaned to check their condition before proceeding with maintenance. The shock absorbers, along with the dust boots and bump stops, are replaced to restore the suspension’s original damping performance. The front lower control arm bushings and rear control arm links (toe) are also replaced to improve steering responsiveness and straight-line stability.
The front and rear brake hoses and fluids are replaced to ensure a stable braking feel.
After the work, the four-wheel alignment is adjusted to the appropriate value, resulting in a suspension system that balances direct handling with driving stability.

[Work Details]
Four-wheel alignment adjustment
Wheel arch deep cleaning
Suspension deep cleaning
Deep cleaning of all arms


Shock absorber replacement
Front lower control arm bush replacement
Rear control arm link (toe) replacement


Front and rear brake hose replacement
Brake fluid replacement
Power steering pump belt replacement

[Replacement Parts]
Shock absorbers
Dust boots and bump stops
Front lower control arm bush
Rear control arm link (toe)
Front and rear brake hoses
Brake fluid
Power steering pump belt

[Exterior Related]
The exterior was refreshed not merely for repair, but with the aim of achieving optimal condition for the entire body.

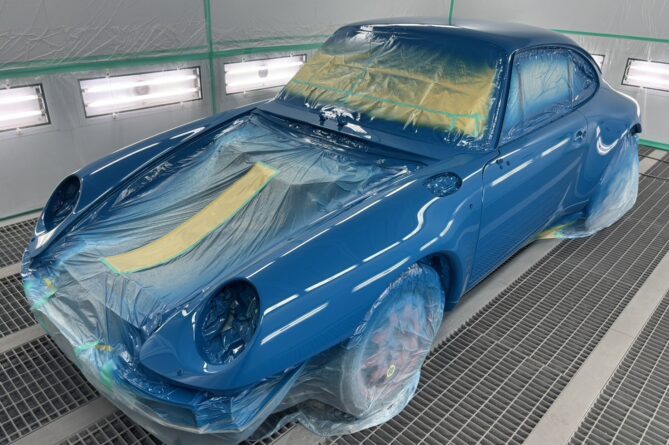

Deep cleaning was performed on the body inner panels and under panels, and after checking the condition of the base, the entire body was repainted. Furthermore, each auxiliary part was repainted in flat black, and the wheel set was also painted to enhance the overall texture and create a sense of unity in the exterior. In addition, we replaced various exterior parts, including the license plate bracket, side marker lamps, stone guards, front hood emblem, rear hood inscription, and dampers. We also thoroughly inspected and refurbished parts that had deteriorated over time, such as the windshield washer nozzles, fuel protect flap rubber, and all seals, beadings, and gaskets.

By carefully examining each and every component, we have created a vehicle that exudes the inherent beauty and style of a Porsche.

[Work Details]
Deep cleaning of body inner panels
Deep cleaning of body under panels
Full body repaint
Flat black paint on various auxiliary parts
Wheel set painting

[Replacement Parts]
Front and rear license plate brackets
Left and right headlamp washer jet nozzles
Headlight leveling motor
Front hood dampers x2
Left and right window washer jet nozzles
Fuel protect flap rubber
Left and right side marker lamps
Left and right stone guards
Front hood emblem
Rear hood inscription
Rear hood damper
Left and right rear spoiler lift levers
License plate lamp
Various seals, beadings, and gaskets
Damping mat

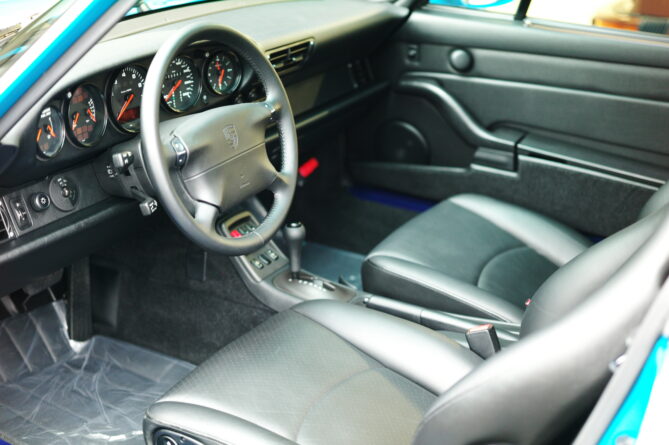

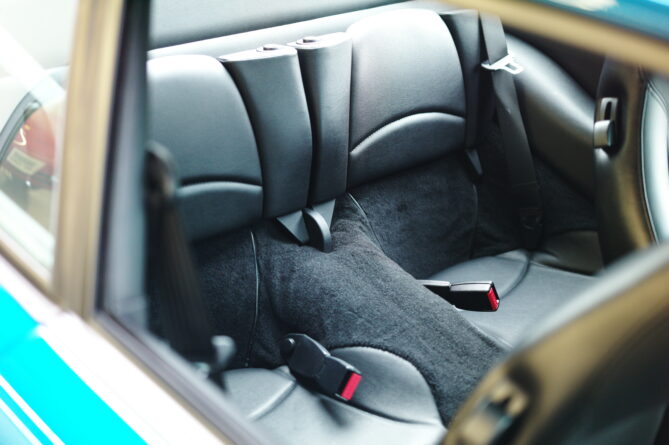

[Interior Related]

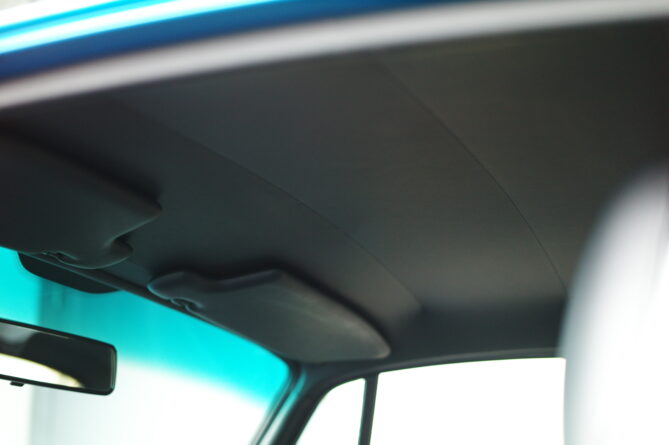

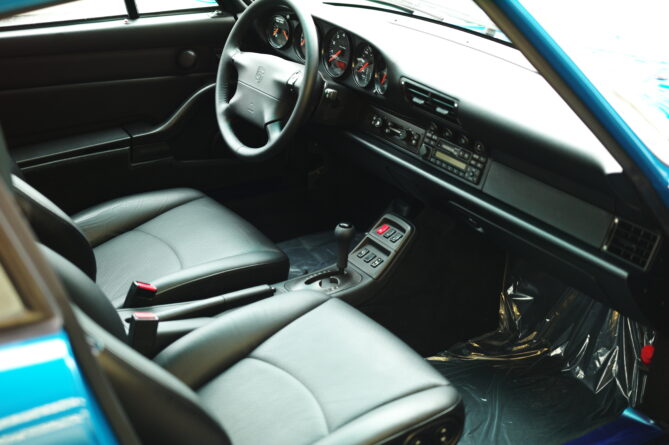

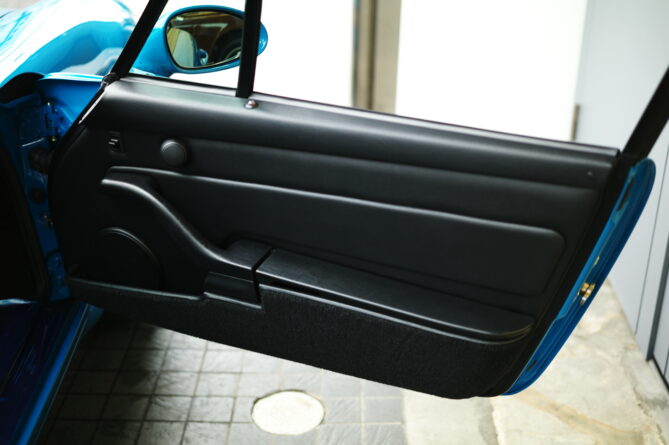

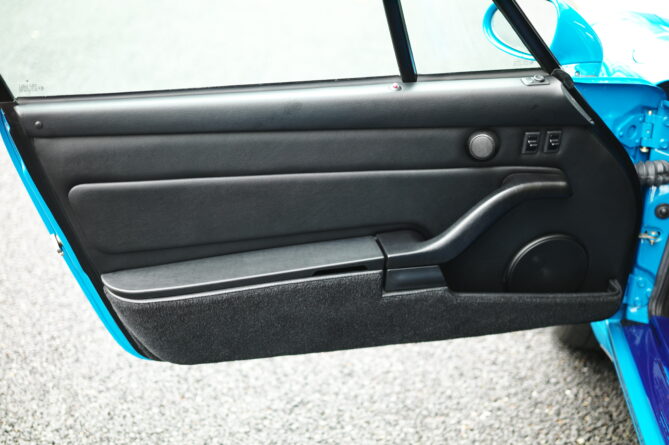

The cabin underwent a total cleaning first to reset any dullness and dirt before starting work. Detailed parts such as the entrance molding rubber pads and covers, and front and rear speakers were replaced to achieve a finish that evokes the quality characteristic of air-cooled Porsches.

[Work Details]
Cabin Room Total Cleaning
Cabin Room Leather Skin Repair Cleaning
(Steering Wheel, Shifter Knob, Handbrake Lever, Left and Right Seats, etc.)


Oil Pressure Meter Cleaning
Tachometer Cleaning
Clock Cleaning

[Replacement Parts Set]
Floor Mats
Clock Adjust Switch
Front Seat Side Hinge Covers
Entrance Molding Rubber Pads & Covers
Door Speaker Brackets
Rear Speaker Grilles

[Electrical System]
The electrical system, primarily the air conditioning, was refreshed. A total cleaning of the A/C line and disassembly and cleaning of the heater housing were performed. Furthermore, the receiver tank, evaporator, expansion valve, and fresh air flap motor were replaced to restore the air conditioning system to proper function.

In addition, the fan belt sensor, series resistor, and battery ground cable were replaced. The oil cooler, A/C condenser, rear blower double relays, and headlight washer relay were also replaced, ensuring thorough attention to even the hard-to-see key points of the electrical system.

Because these are components used daily, we don’t compromise on quality. We meticulously maintain even the unseen parts, ensuring that the electrical system, despite being a classic model, is in optimal working order.

[Work Details]

Total A/C Line Cleaning
Heater Housing Disassembly and Cleaning
Receiver Tank Replacement
Evaporator Replacement
Expansion Valve Replacement
Air Conditioning Filter Replacement
Fresh Air Flap Motor Replacement
Fan Belt Sensor Replacement
Battery Gland Cable Replacement
Engine Gland Cable Replacement
Series Resistor Replacement
Oil Cooler, A/C Condenser, and Rear Blower Double Relay Replacement
Headlight Washer Relay Replacement

[Replacement Parts]
Receiver Tank
Evaporator
Expansion Valve
Air Conditioning Filter
Fresh Air Flap Motor
Fan Belt Sensor
Battery Gland Cable
Engine Gland Cable
Series Resistor
Oil Cooler, A/C Condenser, and Rear Blower Double Relay
Headlight Washer Relay

[Tire Information and Balance Adjustment]
Manufacturer: Pirelli
Grade: P ZERO ROSSO
Size:
Front: 205/55ZR17 (89Y) | N5
Rear: 255/40ZR17 (94Y) | N5
Porsche-specified tires

This vehicle has undergone an engine overhaul.

To ensure you can enjoy your classic Porsche in excellent condition for many years to come, we recommend break-in driving and earlier-than-usual engine oil changes and inspections.

This initial maintenance is crucial for detecting potential problems or malfunctions early and preventing serious breakdowns.

We ask for your understanding and cooperation as this is an important habit for you to enjoy this vehicle safely and for many years to come.

Vehicle production time: 508.5 hours

We only sell vehicles that meet our own strict standards. Our highly skilled craftsmen meticulously inspect and restore each vehicle from the moment it arrives until it is sold, taking ample time to finish it carefully.

Low-interest auto loans with up to 120 installments are available; please inquire.
