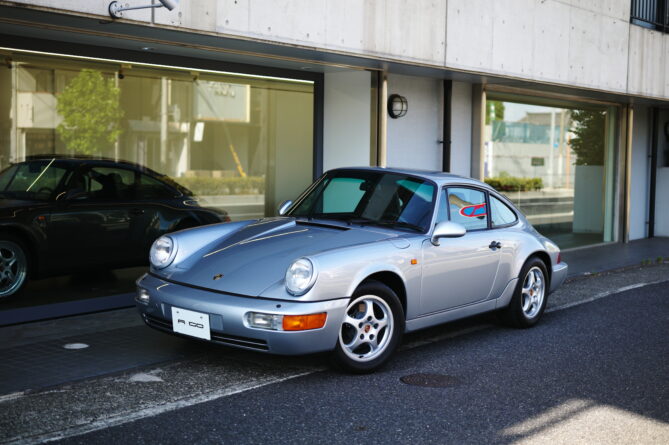

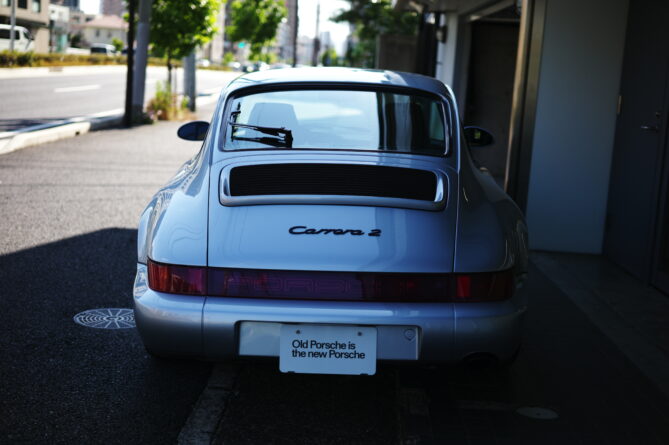

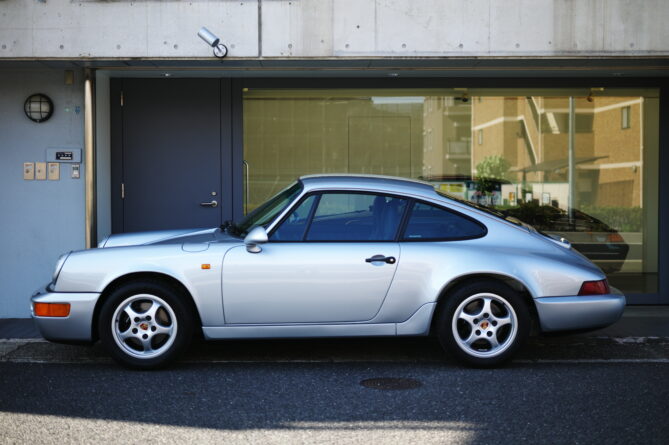

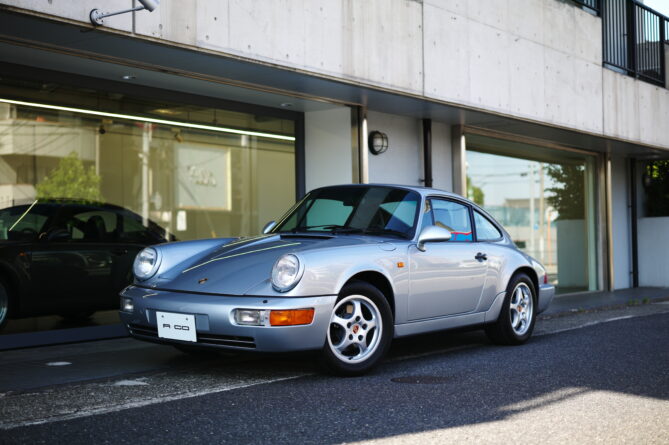

Porsche 911 (964) Carrera 2 Tiptronic, MIZWA Authorized Dealer Vehicle

1991 Model Year (1992 Model Year) Mileage: 73,000 km Vehicle Inspection: Included

Exterior Color: Polar Silver Metallic Interior: Black

Engine: M64/02 62M50803

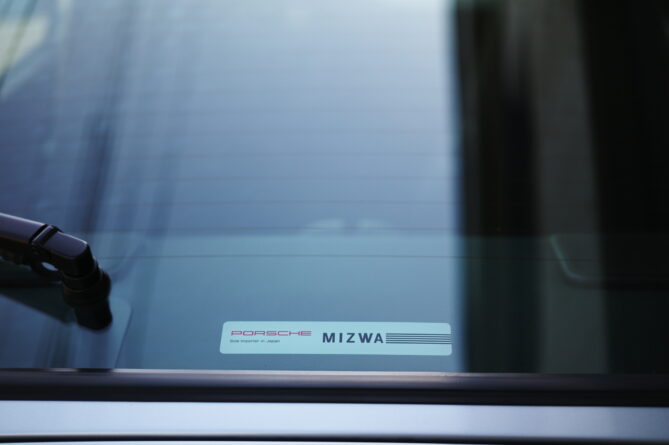

・MIZWA Authorized Dealer Vehicle
☆Engine Fully Overhauled☆
☆R-GO Restoration☆
・Left-hand drive

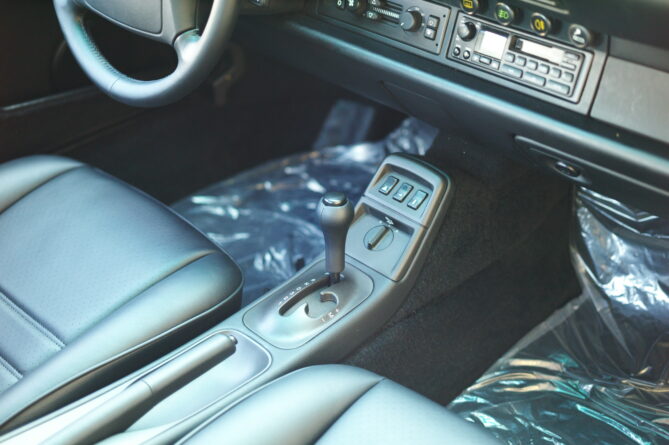

・Tiptronic
・Late 1992 model
・Black leather seats
・Rear wiper
・Onboard computer
・Original 16-inch Cup Design alloy wheels
・Air conditioning
・Power windows
・Power steering
・Airbags
・Spare key and owner’s manual included
・Maintenance and inspection records available
① December 2012, 68,600 km
② December 2023, 68,900 km

☆Our work details☆
【Engine related】

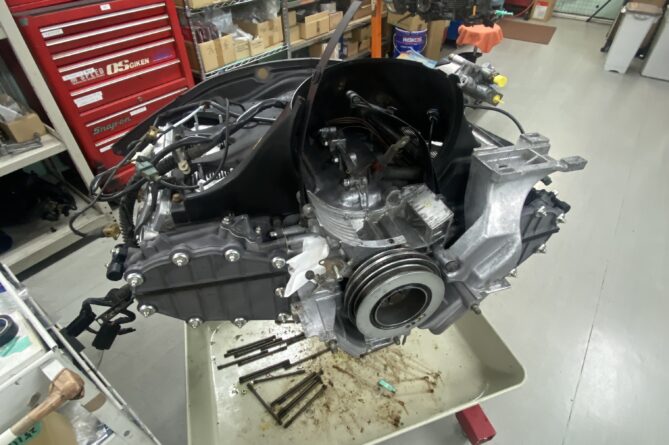

This vehicle has undergone a full engine overhaul. The entire process, from disassembly, cleaning, measurement, processing, and assembly, was carried out using appropriate procedures to bring out the performance inherent in an air-cooled Porsche.
After disassembly, major components such as the cylinder head, camshaft housing, pistons, and cylinders were carefully cleaned using wet blasting. Measurements and inspections were performed on each part, including timing chain alignment check and adjustment, valve timing adjustment, exhaust gas and idling adjustment.

In particular, with this vehicle, we spent ample time meticulously measuring and cleaning each part, carefully checking the internal condition of each component. This work was carried out under numerical control to ensure overall optimal condition.

The cylinder head underwent a complete replacement of all exhaust valve guides, as well as valve seat cutting and valve lapping. Furthermore, the intermediate shaft bearings, 993-type reinforced head stud bolts, piston rings, and oil return tubes were replaced, taking into account the weaknesses and potential future trouble points specific to air-cooled Porsches.

The ignition system included a completely new distributor belt, caps, rotors, spark plug wires, and spark plugs. The oil cooler, oil hoses, and breather hoses were also extensively replaced, refreshing the oil lines. The fuel system was also completely overhauled, with all fuel lines and pressure regulators replaced from the body to the engine compartment.

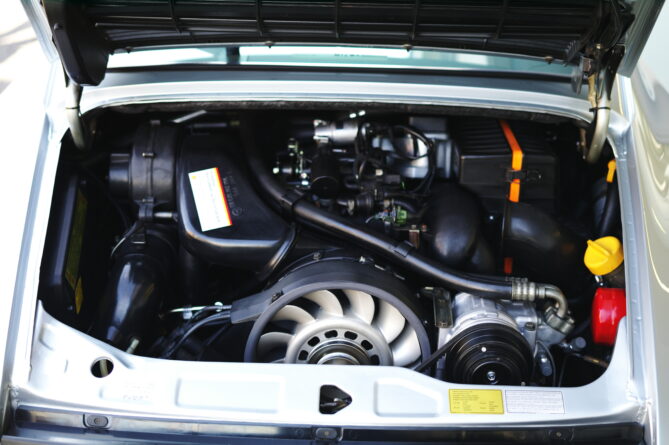

Not only is the aesthetic appeal evident when the engine hood is opened, but every detail, including the internal components, has been meticulously considered, resulting in a vehicle that perfectly balances the original feel and reliability of an air-cooled Porsche.

[Work Details]
Engine Room Deep Cleaning

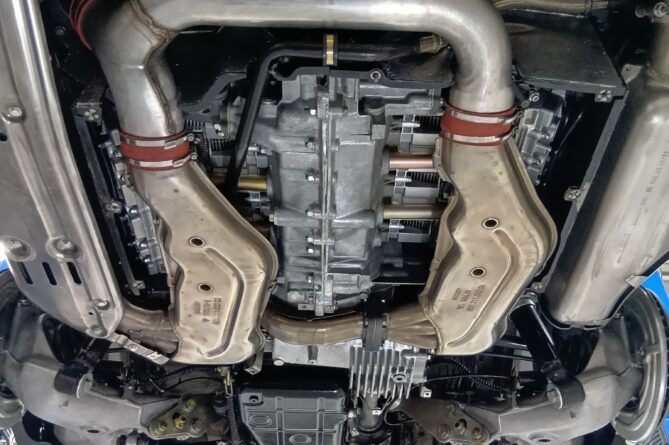

Exhaust Muffler Deep Cleaning & Polishing

Deep Cleaning of Various Engine Parts
(Wet Blasting Treatment)
Crankcase, Cylinder Head, Camshaft Housing, Pistons
Power Steering Belt Housing, Cylinder Air Duct
Measurement and Inspection of Various Engine Parts

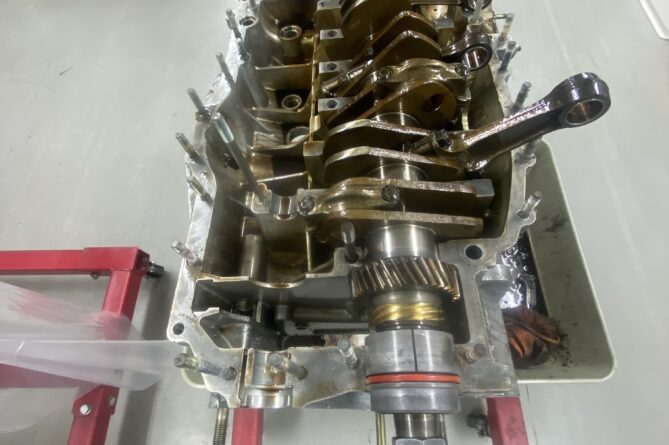

Crankshaft Oil Clearance Inspection and Measurement
Timing Chain Alignment Inspection
Valve Timing and Clearance Adjustment
Exhaust Gas Adjustment and Idling Adjustment
Replacement of All Exhaust Valve Guides
Valve Seat Cutting
Cylinder Head Valve Lapping
Crankcase Housing Gasket Set Replacement
Cylinder Head Gasket set replacement
Intermediate shaft bearing replacement
Head stud bolt (993 reinforced type) replacement
All piston rings replaced
Oil return tube x 3 replaced
Oil bridge x 2 replaced
Cylinder temperature sensor replaced
Crank position sensor replaced
Oil pressure sensor replaced
Cooling fan replaced

Intake manifold cleaning and replacement
Intake manifold rubber sleeve x 6 replaced
Intake rubber sleeve x 4 replaced
Intake manifold air muffler replaced
All injector O-rings replaced

Distributor belt replacement
Desk Tribute cap and rotor replacement
All spark plug wires replaced
All spark plugs replaced

Oil cooler replacement
Two oil cooler pipelines replaced
Five oil hoses around the oil tank replaced
Oil tank to oil filter hose replaced
Two oil breather hoses replaced
Oil filler cap replaced

Fuel tank pressure hose replaced
Two fuel center lines replaced
Engine room fuel return line replaced
Four engine fuel lines replaced
Fuel pressure regulator replaced
Fuel filter replaced

[Complete set of replacement parts]
Crankcase housing gasket set
Cylinder head Gasket set
Intermediate shaft bearing
Head stud bolts (993 reinforced type)
All piston rings
Oil return tubes x 3
Oil bridges x 2
Cylinder temperature sensor
Crank position sensor
Oil pressure sensor
Cooling fan
Intake manifold cleaning
Intake manifold rubber sleeves x 6
Intake rubber sleeves x 4
Intake manifold air muffler
All injector O-rings
Distributor belt
Distributor cap and rotor
All spark plug wires
All spark plugs
Oil cooler
Oil cooler pipelines (2)
Oil tank area oil hose 5 x Oil Tank to Oil Filter Hose
2 x Oil Breather Hoses
5 x Oil Filler Cap
2 x Fuel Tank Pressure Hose
2 x Fuel Center Line
2 x Engine Room Fuel Return Line
4 x Engine Fuel Lines
4 x Fuel Pressure Regulator
2 x Fuel Filter

[Transmission Related]
[Work Details]
Deep cleaning of the transmission
4 x Transmission strainer and oil change

[Replacement Parts]
5 x Transmission strainer
6 x Transmission oil filter

[Suspension Related]
This vehicle has undergone a refresh of various suspension components to improve driving stability and steering feel. Not only were wear parts replaced, but deep cleaning was performed on the wheel wells, suspension, and various arms, carefully checking the overall condition of the undercarriage.
Four-wheel alignment adjustment was performed to optimize the suspension condition. This refined straight-line stability and handling feel, bringing out the direct driving sensation characteristic of air-cooled Porsches.
The steering system was refreshed by replacing the power steering fluid container and hoses in the engine room. Furthermore, by replacing the front lower control arm bushings, stabilizer drop links, tie rod ends, and steering rack boots, we addressed the wear and tear caused by aging. We’ve ensured a firm response to steering inputs and a strong sense of road contact.

Regarding the brakes, we replaced the front and rear brake hoses and refreshed the brake fluid. This also contributes to improved braking feel and a greater sense of security.

By meticulously working on even the unseen parts, we’ve enhanced the sense of unity and confidence you feel the moment you start driving, resulting in a suspension system that allows you to fully enjoy the nimble driving feel inherent in classic Porsches.

[Work Details]
Four-wheel alignment adjustment
Wheel arch deep cleaning
Suspension deep cleaning
Deep cleaning of each arm

Power steering molded hose replacement
Power steering fluid container replacement
Engine compartment pressure return hose replacement

Front lower control arm bush replacement
Front stabilizer drop link replacement
Tie rod end replacement
Steering rack boot replacement

Front and rear brake hose replacement

[Replacement Parts]
Power steering molded hose
Power steering fluid container
Engine compartment pressure return hose
Front lower control arm bush
Front stabilizer drop link
Tie rod end
Steering rack boot replacement
Front and rear brake hoses
Brake fluid

[Exterior Related]
The exterior is not simply repainted; the focus is on “restoring the original texture,” and the entire exterior is refreshed with the intention of resetting it.
First, a thorough deep cleaning was performed on the body inner and under panels. Furthermore, the original paint film condition was inspected, and areas showing deterioration or poor adhesion were removed. Scratches and dents on the body were repaired, and surface preparation was performed to ensure smoothness and adhesion through primer sanding. A thorough surface preparation process was then carried out before the full repaint. This meticulous accumulation of surface preparation ensures a stable surface finish and defined lines after painting, accurately reproducing the distinctive shadows and tension of the 964’s body lines.

In addition, auxiliary parts were refinished in flat black, and the wheels were painted similarly to enhance the overall unified look of the exterior.

The lights were replaced, including the left and right side marker lamps, left rear combination lamp, and license plate lamp, improving both the freshness of the appearance and visibility. Furthermore, the front windshield glass was replaced, and the glass seals on the front and rear windshields were also renewed, ensuring not only aesthetic appeal but also airtightness and durability.

In addition, the front and rear license plate brackets, front bumper retaining straps, front and rear hood dampers, roof side guide rails, and various inscriptions were all meticulously replaced. Furthermore, by meticulously working on a wide range of components, including seals, beadings, gaskets, and even the front and rear wiper blades, we’ve restored the “tightness” and “cleanliness” that tend to be lost over time.

Not only is the paintwork beautiful, but every detail, from the small rubber parts to the exterior components, has been carefully restored, resulting in a car with a strong presence that perfectly recreates the refined and taut appearance of a classic Porsche.

[Work Details] Deep cleaning of the body inner panel
Deep cleaning of the body under panel

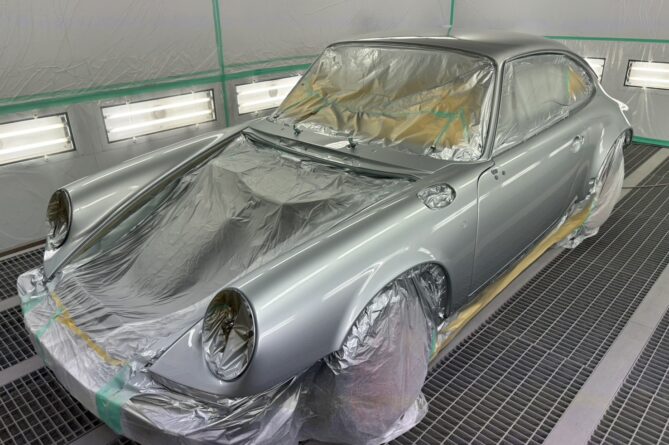

Full body repaint
Flat black paint on various auxiliary parts
Wheel set painting

Replacement of left and right side marker lamps
Replacement of license plate lamp
Replacement of front windshield glass
Replacement of front windshield glass seal
Replacement of rear windshield glass seal
Replacement of engine under cover (R-GO original)

[Replacement Parts Set]
Left and right side marker lamps
License plate lamp
Front windshield glass
Front windshield glass seal
Rear windshield glass seal
Engine under cover (R-GO original)
Front and rear license plate brackets
Front bumper retaining strap
Front bumper upper seal
Front hood inscription
Front and rear dampers
Left and right roof side guide rails
Rear hood dampers
Rear hood inscription
Front and rear wiper blades
Various seals, beadings, and gaskets
Damping mat

[Interior Related]

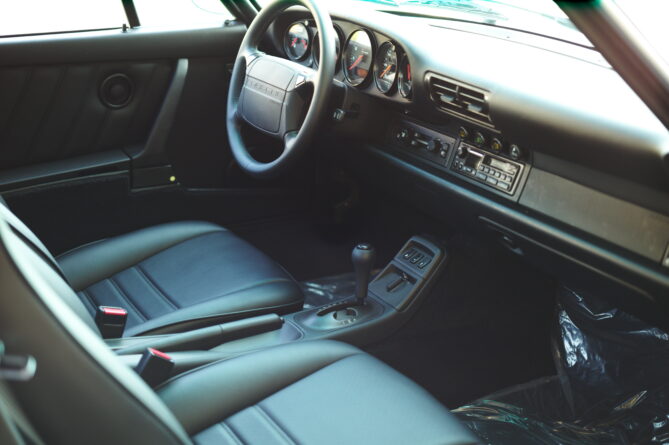

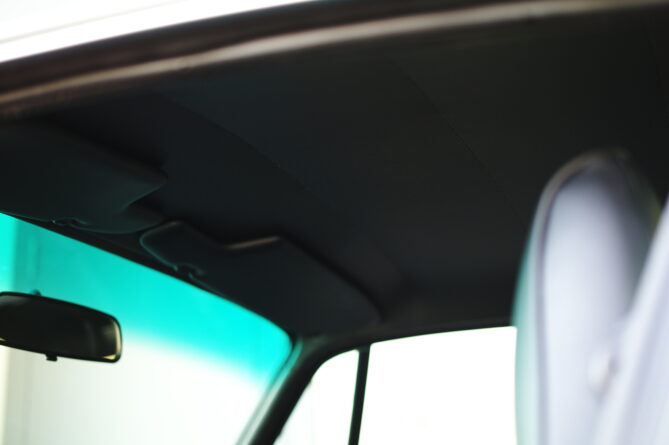

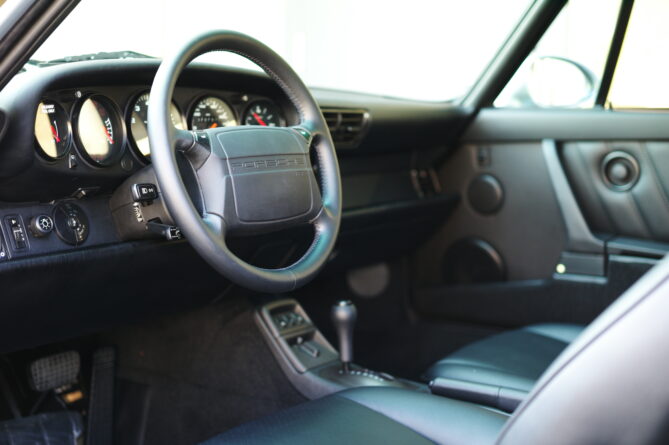

The interior of this vehicle underwent a total cleaning of the entire cabin, followed by a refresh focusing on key areas.
The dashboard, steering wheel, front seats, handbrake lever, and rear wallboard have all been refurbished to eliminate signs of wear and tear.

The floor mats have been replaced to enhance the overall cleanliness of the cabin. Furthermore, meticulous attention has been paid to areas that are naturally touched during entry, exit, and operation, such as the brake pedal pad, entry plate, entry molding cover trim, and door catch striker, resulting in a refined and polished feel from the moment you step inside.

The gauges have also been cleaned, with the fuel gauge’s dial and glass replaced, and the tachometer and clock’s dials also replaced. Because these are areas constantly in the driver’s field of vision, we focused not only on visibility but also on creating a pleasant atmosphere.

In addition, details such as the interior mirrors, entry plate, various trims, and speaker-related components have been reviewed to improve the overall unity and cleanliness of the interior.

By restoring the original atmosphere as much as possible, we have created a finish that allows you to comfortably enjoy the unique space of an air-cooled Porsche.

[Work Details]
Cabin Room Total Cleaning

Dashboard Skin Replacement
Steering Wheel Skin Replacement

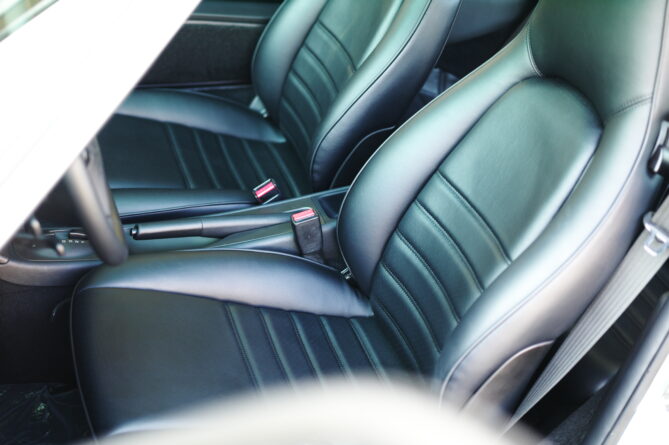

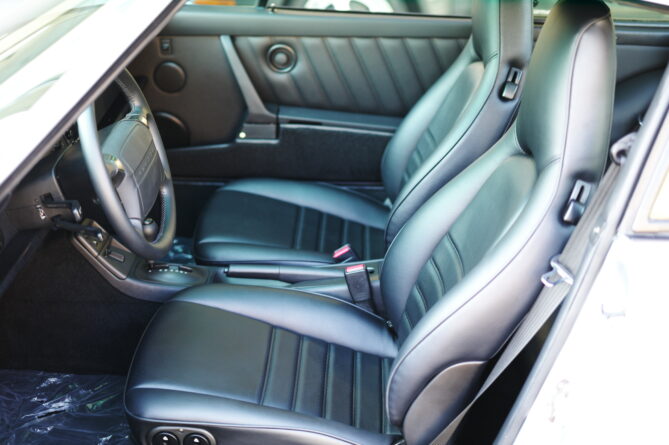

Front Left and Right Seat Skin Replacement
Side Brake Lever Skin Replacement
Rear Wallboard Skin Replacement
Entrance Plate Replacement
Carpet Strip Replacement
Floor Mat Replacement

Each Meter Cleaning
Fuel Meter Dial and Glass Replacement
Tachometer Dial Replacement
Clock Dial Replacement

[Replacement Parts Set]
Brake Pedal Pad
Interior Mirror
Left and Right Side Vent Nozzles
Left and Right Door Catch Strikers
Left and Right Entrance Plates
Left and Right Carpet Strips
Left Door Weatherstrip
Driver’s Seat Reclining Cover
Front Speakers
Front Speaker Small Grille and Bracket
Rear Speakers
Rear Speaker Grille

[Electrical System]
The electrical system of this vehicle has undergone a major refresh, focusing on the air conditioning system, with an emphasis on comfort and reliability. The A/C line has been completely cleaned, and the heater housing has been disassembled and cleaned to thoroughly reset dirt and deteriorated parts that have accumulated over many years. By thoroughly working on the unseen internal parts, the work also takes into account the air conditioning problems unique to air-cooled Porsches.

Regarding the air conditioning system, we replaced the receiver tank, evaporator, and expansion valve, as well as the left and right blower motors, the interior/exterior switching flap motor, and the air conditioning compressor. Furthermore, we performed an R134a retrofit, updating the air conditioning system to meet modern environmental requirements.

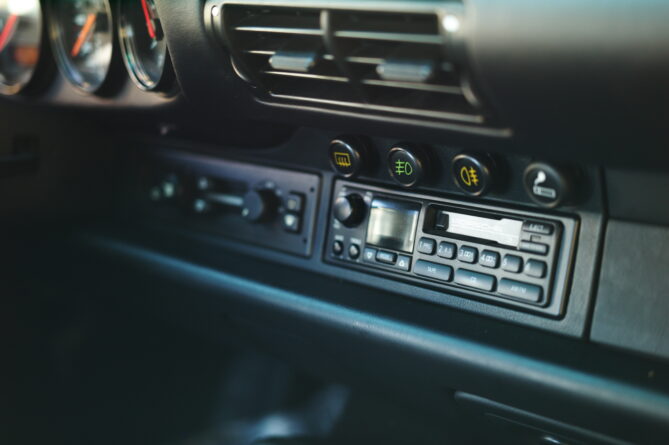

Regarding the controls, we replaced the climate control knob on the air conditioning control unit, completely overhauling the entire air conditioning system. In addition, we replaced electrical components prone to deterioration over time, including the alternator, three accessory belts, the fan belt sensor, the ABS relay, and the oil cooler, A/C condenser, and rear blower double relays.

By comprehensively improving the condition, including not only cooling performance and comfort, but also starting performance and power supply stability, we have created a classic Porsche that can be enjoyed comfortably in everyday driving.

[Work Details]
Total A/C line cleaning
Heater housing disassembly and cleaning
Receiver tank replacement
Evaporator replacement
Expansion valve replacement
Left and right blower motor replacement
Inside/outside switching flap motor replacement
Air conditioning compressor replacement
R134a retrofit set installation
Air conditioning control unit climate knob replacement
Alternator replacement
3 accessory belt replacement
Fan belt sensor replacement
ABS relay replacement
Oil cooler, A/C condenser, and rear blower double relay replacement
Wiper interval replacement Relay Replacement

[Replacement Parts Set]
Receiver Tank
Evaporator
Expansion Valve
Left & Right Blower Motors
Inside/Outside Switching Flap Motor
Air Conditioning Compressor (Rebuilt)
R134a Retrofit Set
Air Conditioning Control Unit Climate Knob

Alternator (Rebuilt)
3 Auxiliary Belts
Fan Belt Sensor
ABS Relay
Oil Cooler, A/C Condenser, Rear Blower Double Relay
Wiper Interval Relay

[Tire Replacement & Balancing]
Manufacturer: Continental
Grade: Extreme Contact DW06 PLUS
Size:
Front: 205/55ZR16 (91W)
Rear: 225/50ZR16 (92W)

Vehicle Production Time: 635.5 hours

We only sell vehicles that meet our own strict standards. Our highly skilled craftsmen meticulously inspect and repair each vehicle from arrival to sale, dedicating ample time to the final finishing touches.
